ELECTROMEN

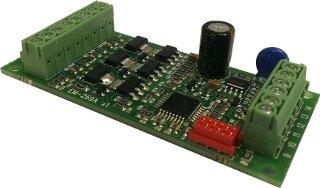

EM-269A
Sterownik silników BLDC

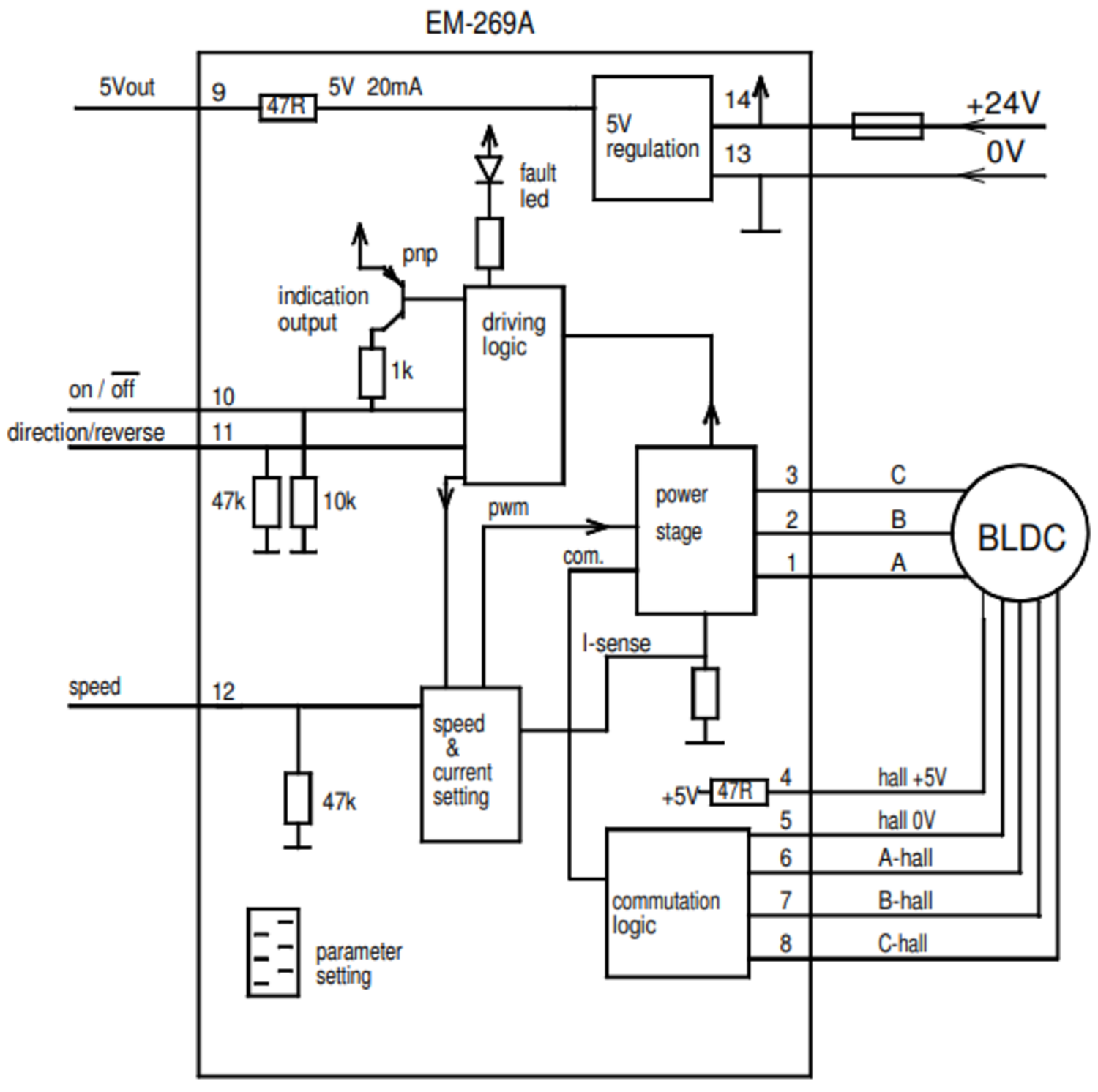

EM-269A is brushless DC-motor driver for motors with hall sensor feedback. The unit has a mosfet power stage with good efficiency
and it meets also todays EMC requirements. The unit has the basic digital command inputs like direction, start/stop, and analog
input for speed control. Device has one NPN output for fault and overcurrent indication use. Indication output functions can be
defined with parameter. The fault situations are also indicated with on-board LED.
There are two control options for speed. Direct control ( open loop ) sets motor voltage in propotion to control voltage as with
a standard DC-motor. Closed loop mode uses hall sensor feedback for speed control. This mode offers good speed regulation.
Start and stop ramps are working in both mode. Speed adjust range, closed loop rpm range and ramps can be set with parameters.
Analog input is filtered, so that also PWM signal of PLC can be used to control speed.
Parameter setting can be done digitally with EM-236 interface unit or with Emen-Tool lite PC-programand EM-268 adapter. There is also
an option to use iPhone with Ementool-APP and EM-326 adapter. The Parameters settinfg are stored into driver's nonvolatile memory .
The parameter interfaces can be also used for motor current monitoring.
Driver card can be installed in DIN-rail base and some enclosure options are also available.
FEATURES
- Three phase output
- Speed adjustment
- Current limit and trip.
- Open/closed loop modes
- Settable Indication output
- Good efficiency
- Low EMC emissions
- DIN-rail mountable
- 12-24 V DC, 2 A prąd ciągły, 3 A prąd szczytowy
- Praca w pętli otwartej lub zamkniętej (sprzężenie zwrotne z czujników Halla)
- Praca dwukwadrantowa
- Kompaktowa budowa, montaż na szynie DIN
Wybrany wariant produktu
Sterownik silnika BLDC, 2Q, 12-35V DC, 2A
Nr produktu:
Wybrany wariant produktu
Specyfikacja techniczna
| 2421_Peak current (A) | 3 |
|---|---|

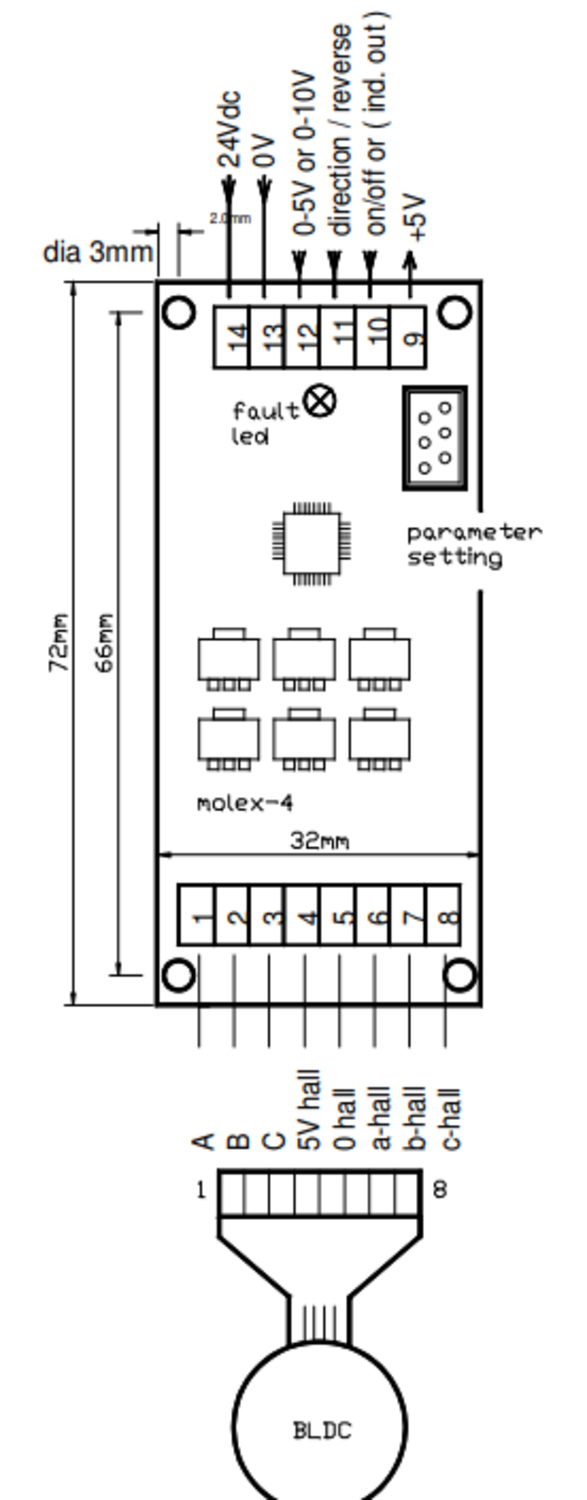

| 5646_Dimensions length x width x height (mm) | 72x32x18 mm |
| Częstotliwość PWM | 16kHz |
| Dostawca | Electromen |
| Maksymalny prąd ciągły | 2 A |
| Masa | 20 g |
| Montaż | szyna DIN |
| Napięcie zasilania | 12 V DC, 24 V DC |
| Odpowiedni silnik | Bezszczotkowy DC |
|---|---|
| Rodzaj sterowania | Prędkość, Kierunek, Moment, Soft start/stop |
| Sygnał niski - logiczne 0 | <1V = OFF |
| Sygnał wysoki - logiczne 1 | >4V = ON |
| Wejście analogowe | 0-5V lub 0-10V |
| Zakres ustawień prądu | 0.1-3 A |
Opis produktu
EM-269A is brushless DC-motor driver for motors with hall sensor feedback. The unit has a mosfet power stage with good efficiency
and it meets also todays EMC requirements. The unit has the basic digital command inputs like direction, start/stop, and analog
input for speed control. Device has one NPN output for fault and overcurrent indication use. Indication output functions can be
defined with parameter. The fault situations are also indicated with on-board LED.
There are two control options for speed. Direct control ( open loop ) sets motor voltage in propotion to control voltage as with
a standard DC-motor. Closed loop mode uses hall sensor feedback for speed control. This mode offers good speed regulation.
Start and stop ramps are working in both mode. Speed adjust range, closed loop rpm range and ramps can be set with parameters.
Analog input is filtered, so that also PWM signal of PLC can be used to control speed.
Parameter setting can be done digitally with EM-236 interface unit or with Emen-Tool lite PC-programand EM-268 adapter. There is also
an option to use iPhone with Ementool-APP and EM-326 adapter. The Parameters settinfg are stored into driver's nonvolatile memory .
The parameter interfaces can be also used for motor current monitoring.
Driver card can be installed in DIN-rail base and some enclosure options are also available.
FEATURES
- Three phase output
- Speed adjustment
- Current limit and trip.
- Open/closed loop modes
- Settable Indication output
- Good efficiency
- Low EMC emissions
- DIN-rail mountable
